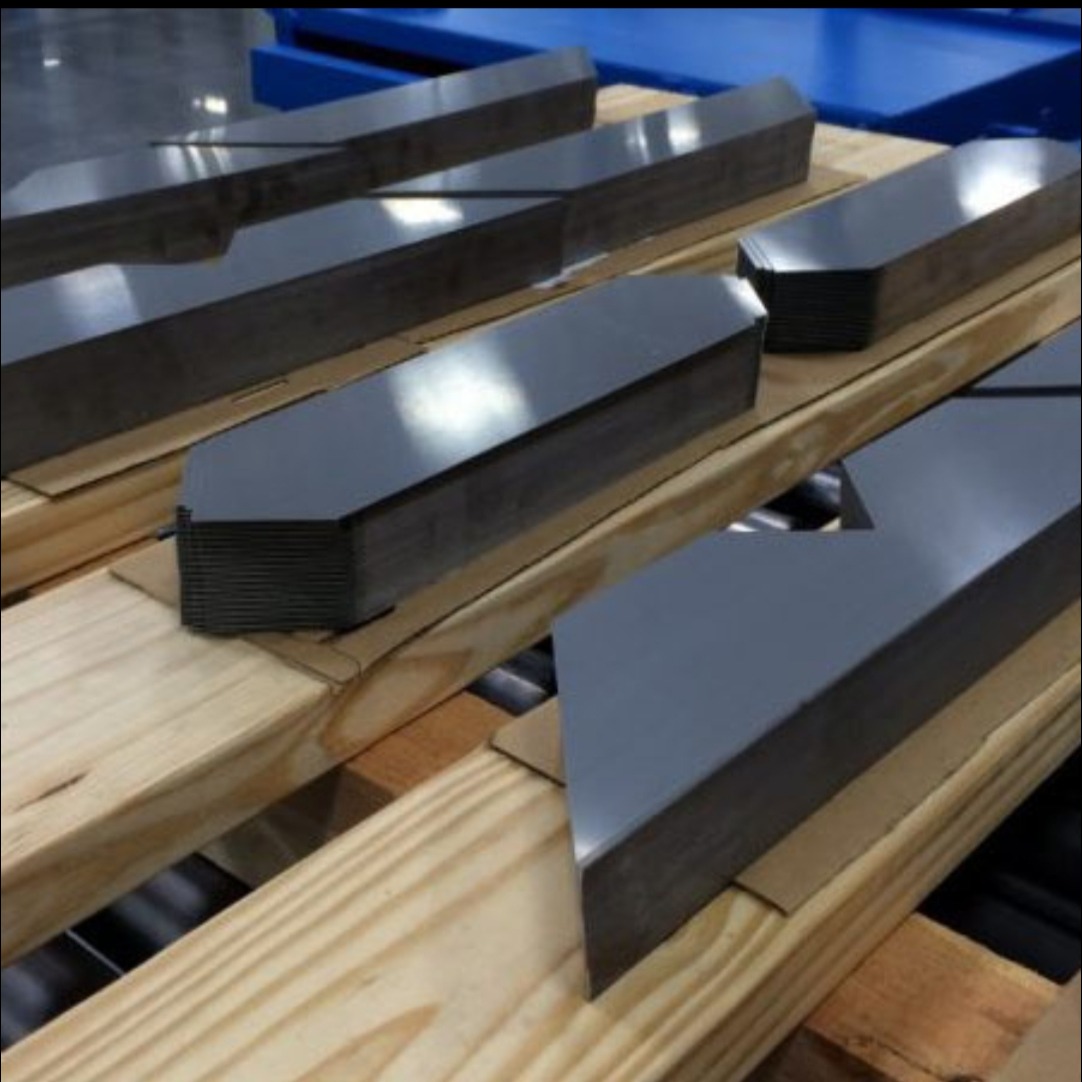

Vertical Step-Lap CRGO Transformer Lamination
By Rasquinha Transcore Electricals
We manufacture high-precision Vertical Step-Lap CRGO Laminations designed for improved efficiency and performance. The Westinghouse step-lap system uses a reduced overlap of 3–5 mm (compared to the traditional 10–15 mm) with progressive shifting across multiple sheets. This design optimizes the magnetic path and enhances assembly.
Key Benefits:
Lower material usage
Faster core assembly
Reduced noise and vibration
